Material and color

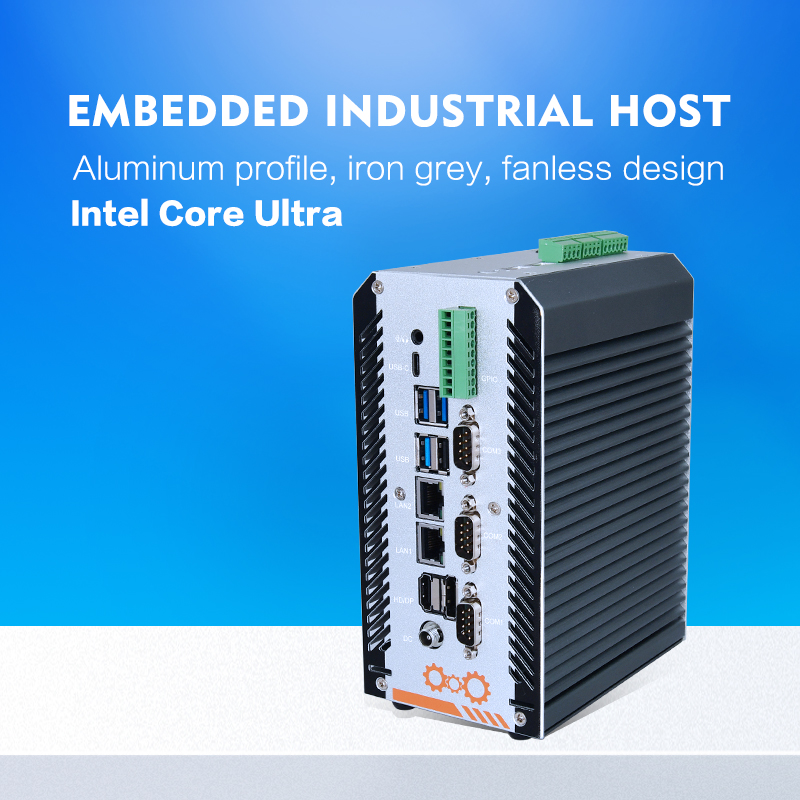

Aluminum profile, iron grey, fanless design

Installation

Desktop foot pad type (default), 35mm industrial rail type, wall-mounted

Processor system

Onboard Intel Core 12th/13th generation -U /-P series processor, TDP 28W

UEFI BIOS

Memory

2 x DDR 5SO-DIMM, total maximum 64GB

Storage

1 x M.2 M-Key 2280 (PCIe 3.0 x 2 and SATA3.0, hardware option)

Display

1 x HDMI2.0, 1 x Mini DP, 1 x Type-C (DP+USB3.0)

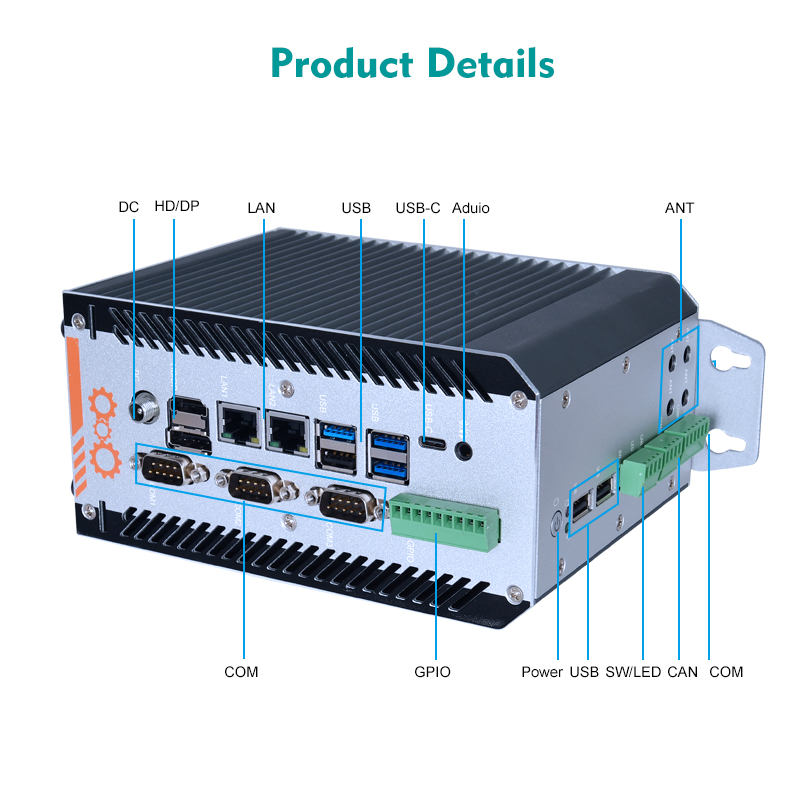

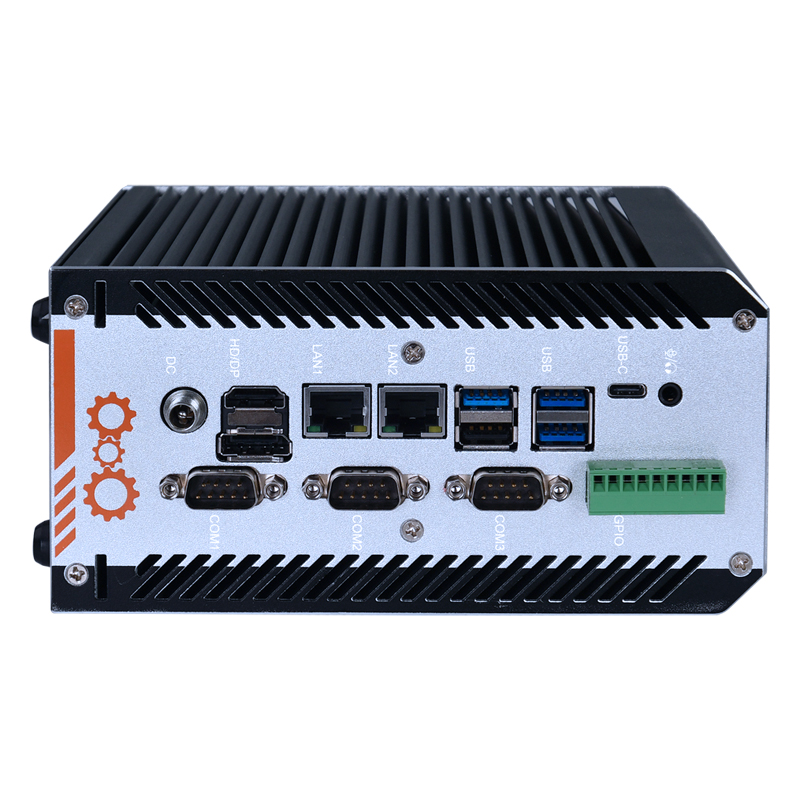

Chassis I/O interface

DC Phoenix terminal, 2 x LAN, 1 x HDMI, 1 x Mini DP, 1 x Type-C

7 x USB, 1 x DB9 RS422/485 (COM3, BIOS), 3 x DB9 RS232 (COM1/2/4)

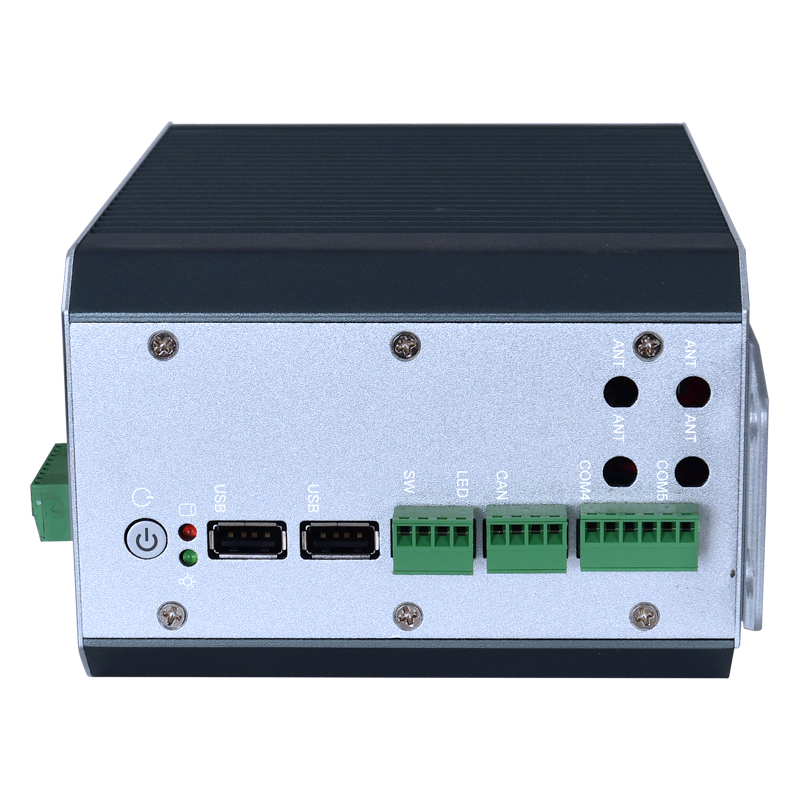

Switch button, 4 x ANT holes, 8bit GPIO, 1 x Audio two-in-one

Expansion interface/function

External TPM2.0 optional

1 x E-Key (PCIe+USB2.0, WIFI/BT)

1 x B-Key (USB3.0 +USB2.0, 4G/5G)

Power Supply

DC 9-36V, 120W

Working Environment

Working temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%

Storage temperature: -40℃ ~ +85℃; Storage humidity: 5% ~ 90%

Operating System

Windows 10, Windows 11, Linux

Size

174x129x86 mm (without bracket)

Gross Weight

About 4Kg
