CPU

CPU

With Intel Baytrail-D/I/M?serial Cpu

Memory

Integrated 2GB\4GB DDR3 1066/1333MHz,can add one Ram socket , max support 8g Ram

storage

Onboard SSD16/32/64/128G（Optional）

SATA?and MSATA，HDD?and SSD（Optional）

Internet?(LAN)

2*RTL8111E RJ45?Gigabit Lan Port

?

?

?

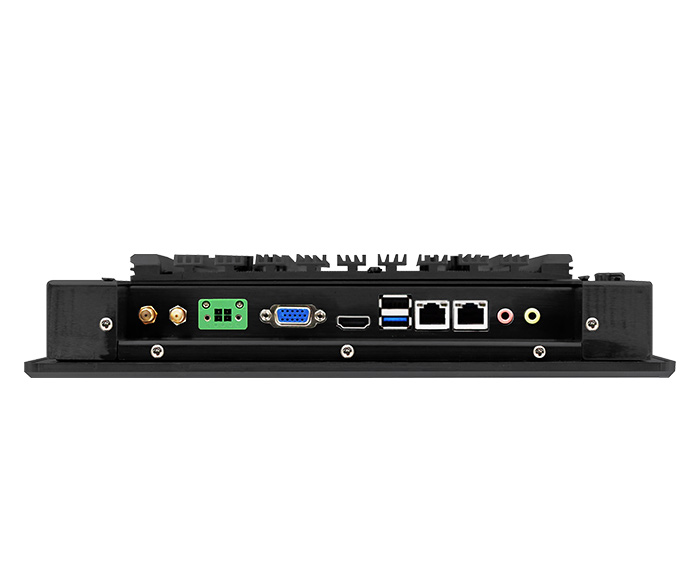

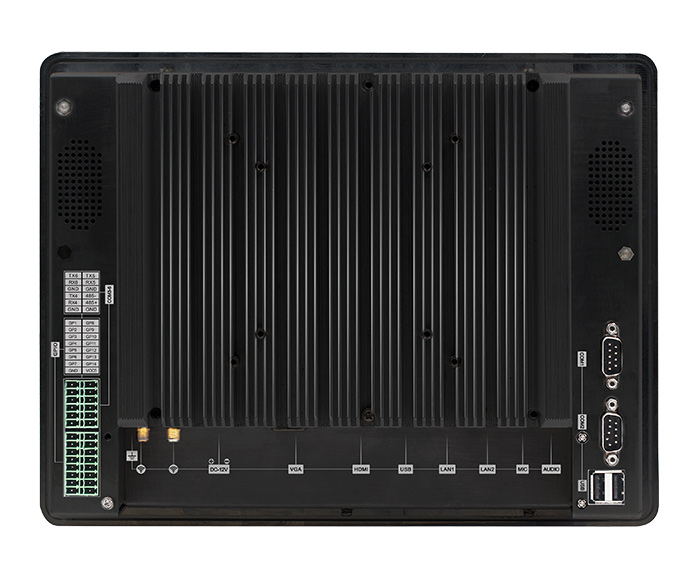

I/O interface

5*RS-232, 1*RS422/485,2*DB9?Interface RS-232 3*Three-wire RS-232，

2*USB2.0,2*USB3.0，

1*14BIT GPIO?interface，

1*LINE OUT 1*MIC，

2*Wifi?antenna Port，

1*power switch button，

1*VGA Max resolution Support 2048x1536 1*HDMI Max resolution support 3200*2000@60HZ

Expansion wire

1*full size Mini-PCIE?socket

watch-Dog timer

0-255 second, Sample code optional

physcial Characterstics

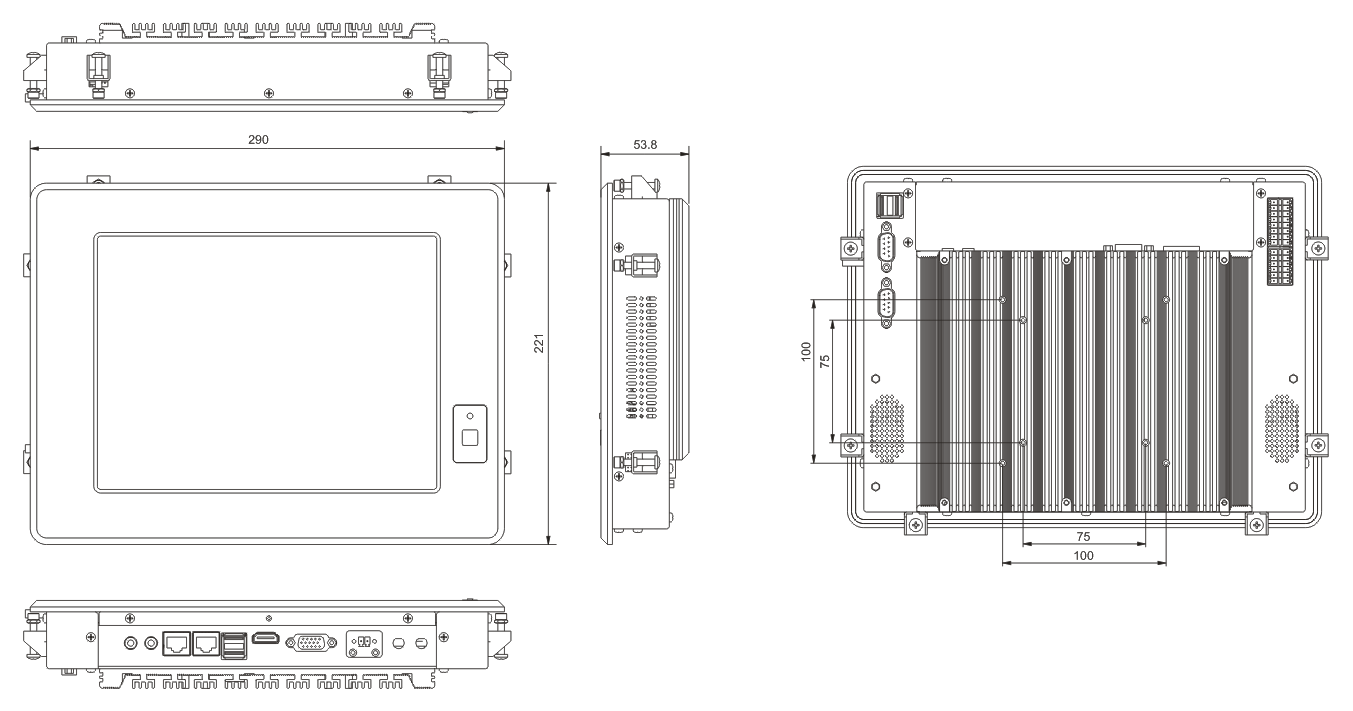

size

290*221*53.8mm

Wieght

2.43kg

OS?support

Operate System

Support Windows 7/Windows8/Windows8.1/Windows10/Linux/Android

Power support

Input Voltage

Single input DC DC12V power supply +/- 5%

Power consumption

20W

?

?

LCD?display

Display type

10inch TFT LED

Maximum resolution

800*600

Perspective

80 (Left), 80 (right), 70 (UP), 70 (Down)

Lumens (cd/m2)

350cd/m2

Contrast

400:1

Backlight life

30,000 hrs (Min.)

?

Touch screen

Types of

Five-wire resistive touch screen

Transmittance

≥85%

Controller

USB?Port

Durability (number of touches)

>3500?million times

?

?

Environment

Operating temperature

-20℃ ~ +60℃

Storage temperature

-40℃ ~ +85℃

Relative humidity

0% ~ 90%Relative humidity, none condensation

EMC

CE, FCC Class B, BSMI

Safety certification

CB, CCC, BSMI, UL

Front panel protection

Front panel IP65

Order Information

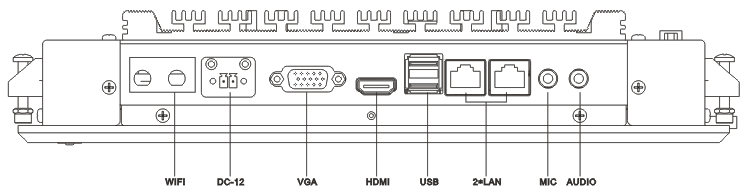

I/O?Port presentation

Model

description

?

PPC-HU10A

With HU803?Motherboard（I3-4010U/I5-4200U/I7-4500U）

PPC-BT10A

With BT203?Motherboard（J1900/J1800）

PPC-BU10A

Wtih BU90Z3A?Motherboard(I3-5010U/I5-5200U/I7-5500U)
